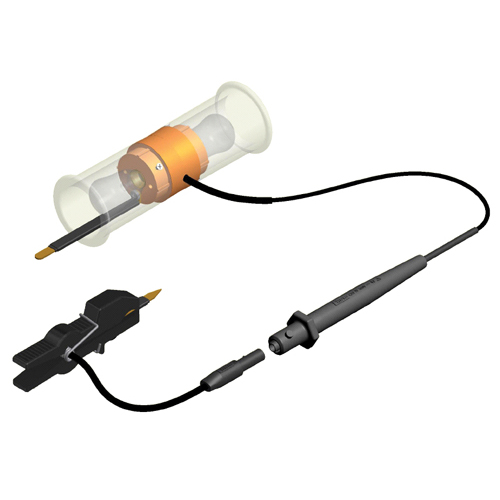

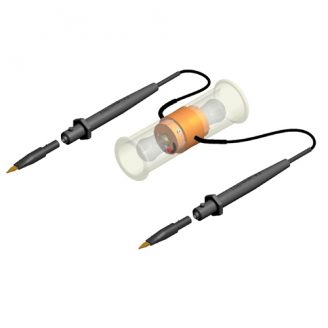

LV Test Lamps – Fixed Rounded Tip with Floating Peg Probe

Low Voltage Tester – TMAC LV Test Lamps TL300

TM12694 – 15W
TM12695 – 25W

Part number: Fixed Rounded Tip w/ Floating Peg Probe

Product Enquiry


TMAC LV Test Lamps are Category IV 300 V rated to AS 61010. They are complemented by the TMAC Test Lamp Tester (optional accessory, extra cost) for proving their operation in the field.


  • 240/415 V AC and DC
  • Cat IV 300 V
  • Certified and tested to AS 61010:2003
  • Fused: 2 A 500 V, BC 50 kA @ 500 V AC and 20 kA @ 500 V DC
  • 15 W or 25 W bulb
  • Specially designed locking fitting to prevent accidental disconnection during use.
  • 3 m lead with detachable peg clip/chisel probe and 6.5 x 1.5 mm rounded flat probe.
