DRM-10 – Battery Operated Micro-ohmmeter
Resistance Measurement – Instruments – DRM-10 – Battery Operated Micro-ohmmeter
Product Enquiry
Description
Resistance Measurement – Instruments
Four terminal measurements suitable for both plant and field maintenance. Light-weight, shock resistant, backlit for dark areas and suitable for use in the presence of intense magnetic fields.
Specifications
Measurement Current: Automatic adjusPAent from 5 mA to 10 A
Measurement Range: 0.01 °_ to 200 _
Scales: 20 °_ to 200 _
Resolution: 0.01 °_
Running Temperatures: -20 °C to +50 °C
Storage Temperatures: -40 °C to +50 °C
Humidity: 0 to 95 % non-condensed Submersible, rainproof
Autonomy: > 12 000 measurements, at 10 A (for a cable loop resistivity < 50 m_ > 10 000 measurements, for all other currents
Battery: Six (6) 1.2 V, 2.1 Ah rechargeable «A» NiMh batteries
Charger: 12 V 1 A adapter with sealed connector, available for 110 V or 220 V
Display: Liquid crystal 128 x 64 dots, wide ranging temperatures 2 back-lighting intensities (100 %, 50 %). 60 s 41 mm
Dimensions: 203.3 x 114.3 x 50.8 mm
Weight: 0.86 kg

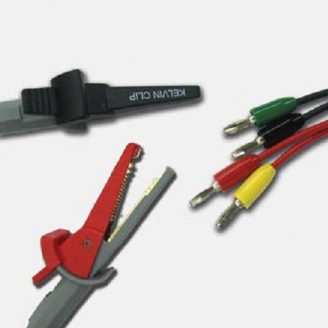

Accessories Included: Battery Charger, Standard Measuring Clips and Product Manual
